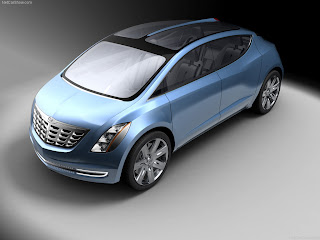

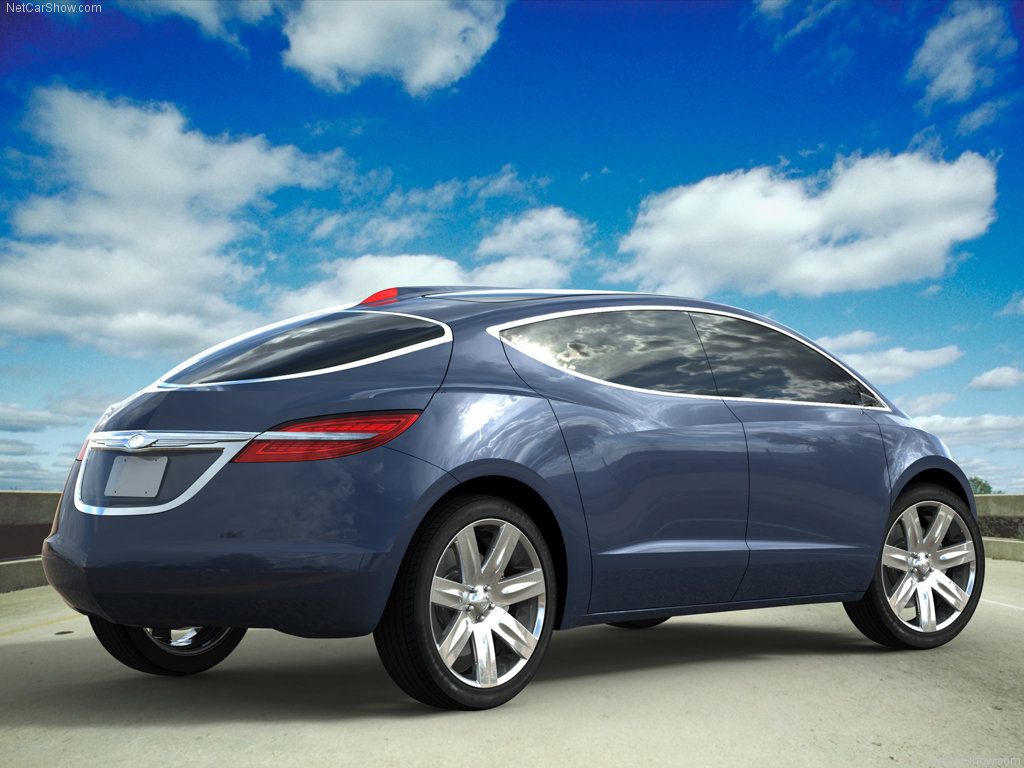

Chrysler ecoVoyager Concept

Chrysler ecoVoyager Concept




The all-new Chrysler ecoVoyager's wheels are driven by an electric motor, with power primarily supplied by a lithium-ion battery pack capable of satisfying a consumer's typical daily commute of less than 40 miles.

The electric motor develops 200 kilowatts (268 horsepower), enabling acceleration from 0 to 60 mph in less than eight seconds. A regenerative braking system captures energy that would normally be lost and returns it to the battery, making the Chrysler ecoVoyager concept a very efficient and spacious vehicle.

The ecoVoyager takes advantage of a range extender - in this case, a small, advanced hydrogen fuel cell -- to extend the vehicle range for occasional long trips. With this advanced technology, the Chrysler ecoVoyager's total range is greater than 300 miles, while no emissions - besides water vapour -- come from the tailpipe along the way.

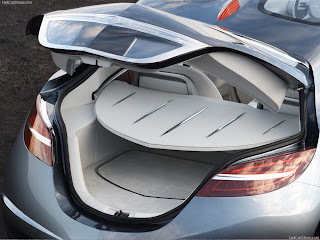

With the entire propulsion system located below the ecoVoyager's floor, space is maximized for utility of passenger and cargo.































Chrysler ecoVoyager Concept Specifications :-

Vehicle Type: Range-extended Electric Vehicle (40-mile all-electric range with hydrogen fuel cell range extender), Two-row seating, four-passenger

Weight and Dimensions :

Weight/GVWR: 2750 lbs./3500 lbs.
Length: 191.2 inches/4856mm
Width at H-point: 75.4 inches/1915mm
Height: 63.0 inches/1600mm
Wheelbase: 116.0 inches/2946mm
Couple 1-2: 45.4 inches/1154mm
Front overhang: 34.0 inches/864mm
Rear overhang: 41.2 inhces/1046mm
Track front/rear: 65.6 inches/1666mm
Approach angle: 15.0 degrees
Departure angle: 20.9 degrees
Turn circle: 40 feet/12.2m
Maximum width: 75.4 inches/1915mm

Powertrain and Suspension :

Layout : Front wheel drive
Motor: Single electric
Power: 200 kW (268 hp)
Regenerative braking
Battery: 16 kWh Li-ion battery pack
Range extender: Hydrogen fuel cell, PEM 45kW, 700bar (10,000psi) high pressure tanks
Suspension
Front - MacPherson Strut
Rear - MacPherson Strut

Wheels and Tyres :

Tyre size front/rear: P235/45R22x8 30.3 inches/770mm
Tyre manufacturer: Goodyear

Colour Scheme :

Exterior: Polar Ice Blue
Interior: Dove Gray

Key Performance Attributes :

0-60 mph: 8.8 seconds
Standing ¼ mile: 12.9 seconds
Top speed: 115 mph
All-electric range: 40 miles
Total range: 300 miles
